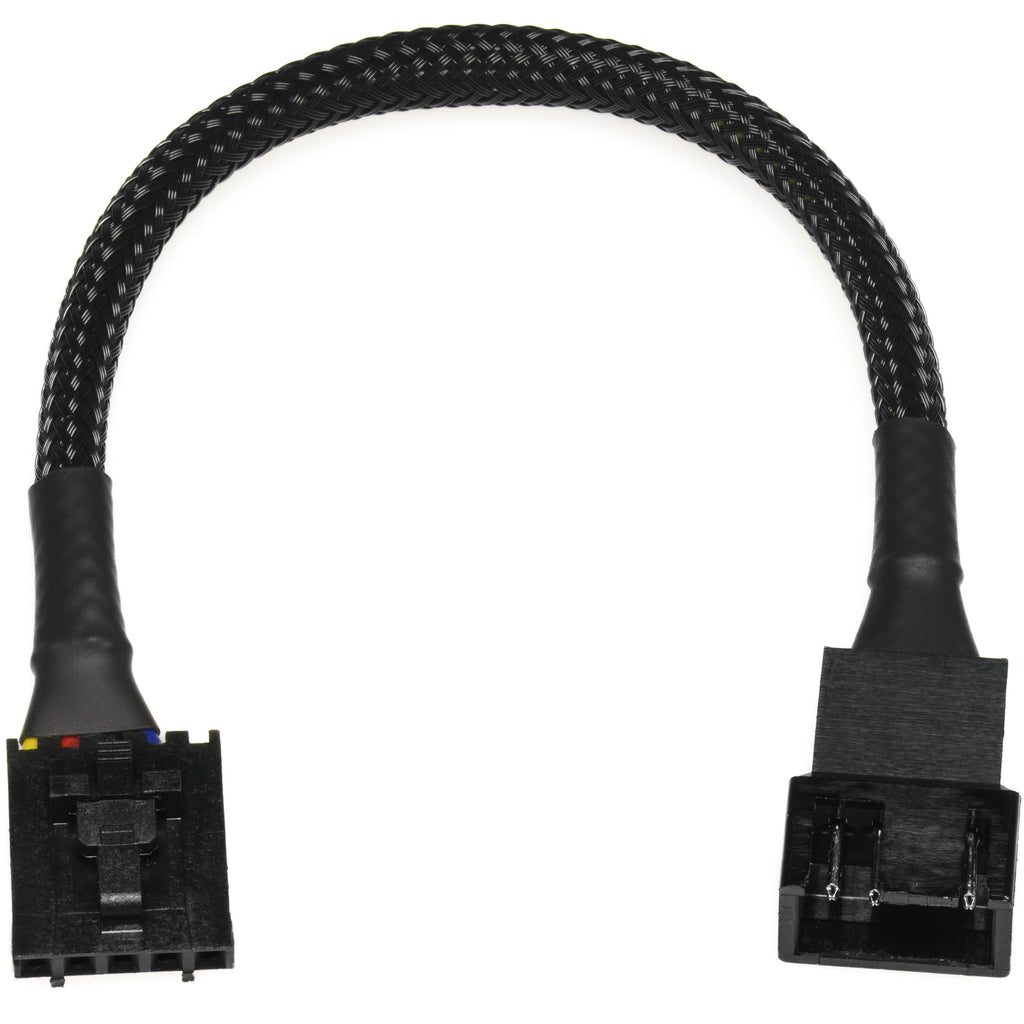

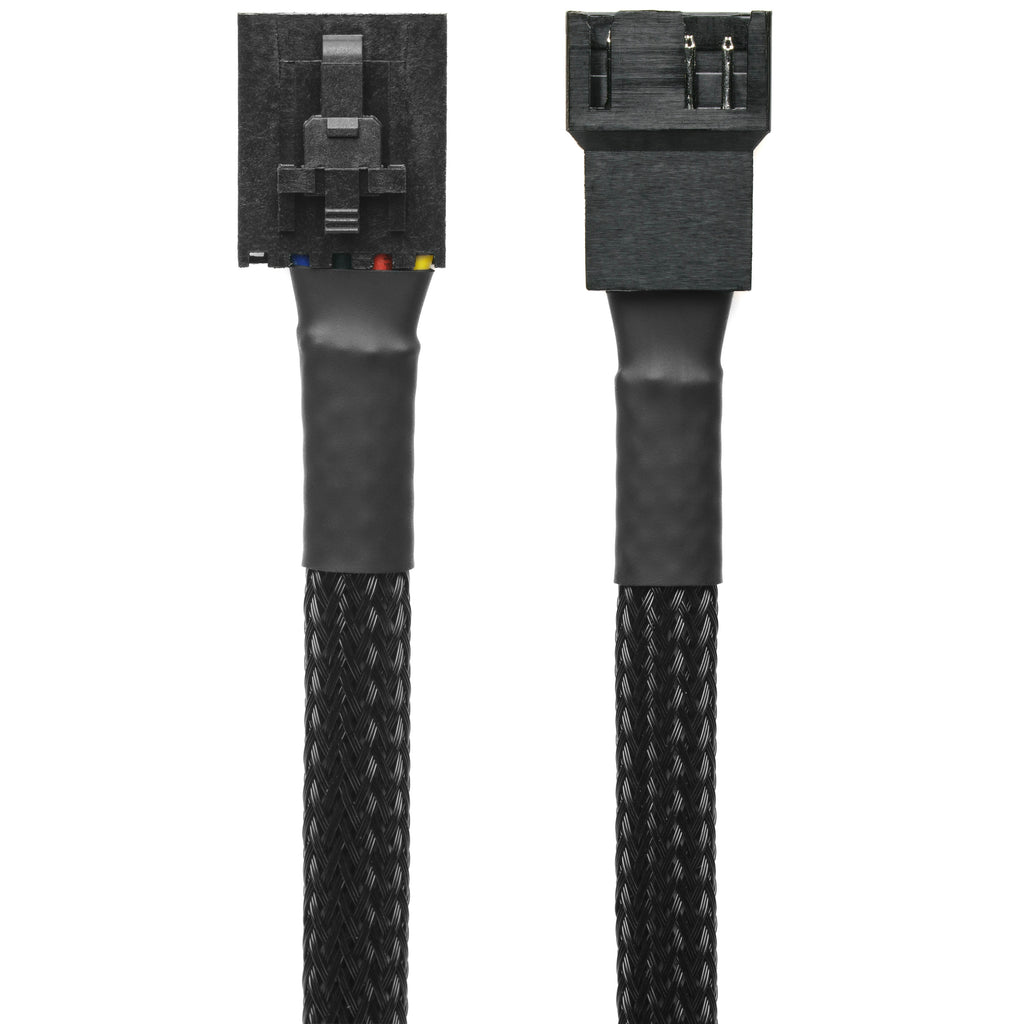

Latching 5-Pin PWM Fan Adapter Cable for Dell Motherboards

Disclaimer: This list is not exhaustive. Dell transitioned to standard 4-pin fan headers beginning with 6th generation OptiPlex systems (3040/5040/7040 series, circa 2015-2016) and later Precision generations. To our knowledge, all Dell 5-pin fan headers share the same pinout. Verify your system has a 5-pin latching fan connector before ordering. Some systems use 5-pin connectors only for CPU/HDD fans while using latching 4-pin connectors for system/chassis fans.

Dell OptiPlex Desktop Systems

2nd Generation (Sandy Bridge, 2011-2012)

• OptiPlex 390
• OptiPlex 790
• OptiPlex 990

3rd Generation (Ivy Bridge, 2012-2013)

• OptiPlex 3010
• OptiPlex 7010
• OptiPlex 9010

4th Generation (Haswell, 2013-2014)

• OptiPlex 3020 (MT/DT)
• OptiPlex 7020 (MT/DT)
• OptiPlex 9020 (MT/DT)

Dell Precision Workstation Systems

LGA1366 Generation (Nehalem/Westmere, 2009-2011):

• T3500 (single socket)
• T5500 (dual socket)
• T7500 (dual socket)

Entry-Level LGA1155/1150 (Sandy Bridge/Ivy Bridge/Haswell, 2011-2014):

• T1600 (LGA1155, Sandy Bridge, 2011-2012)
• T1650 (LGA1155, Ivy Bridge, 2012-2013)
• T1700 (LGA1150, Haswell, 2013-2014)

LGA2011 Generation (Sandy Bridge-EP/Ivy Bridge-EP, 2012-2013):

• T3600 (single socket)
• T5600 (dual socket)
• T7600 (dual socket)

LGA2011 Generation (Ivy Bridge-EP, 2013-2014):

• T3610 (single socket, Xeon E5-2600 v2)
• T5610 (dual socket, Xeon E5-2600 v2)
• T7610 (dual socket, Xeon E5-2600 v2)

LGA2011-3 Generation (Haswell-EP/Broadwell-EP, 2014-2017):

• T5810 (single socket, Xeon E5-1600 v3/v4 or select E5-2600 v3/v4)
• T7810 (dual socket, Xeon E5-2600 v3/v4)
• T7910 (dual socket, Xeon E5-2600 v3/v4)
